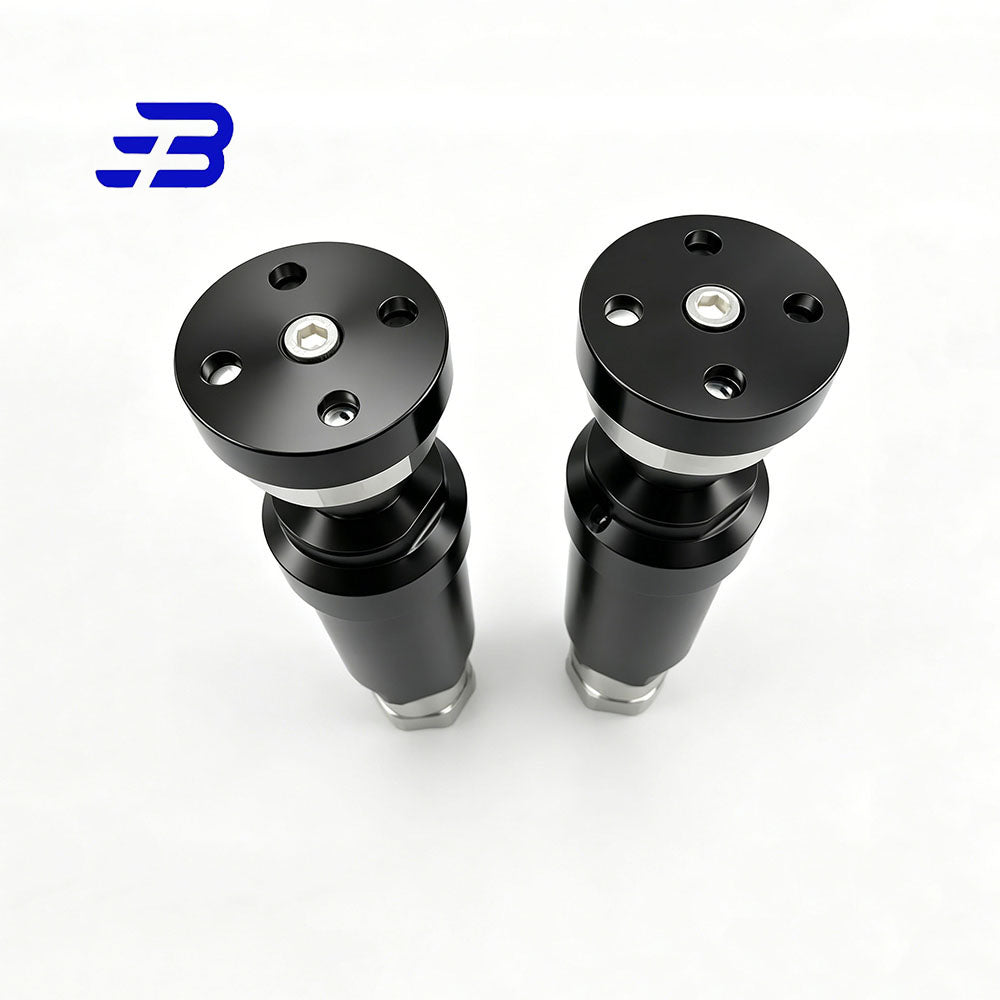

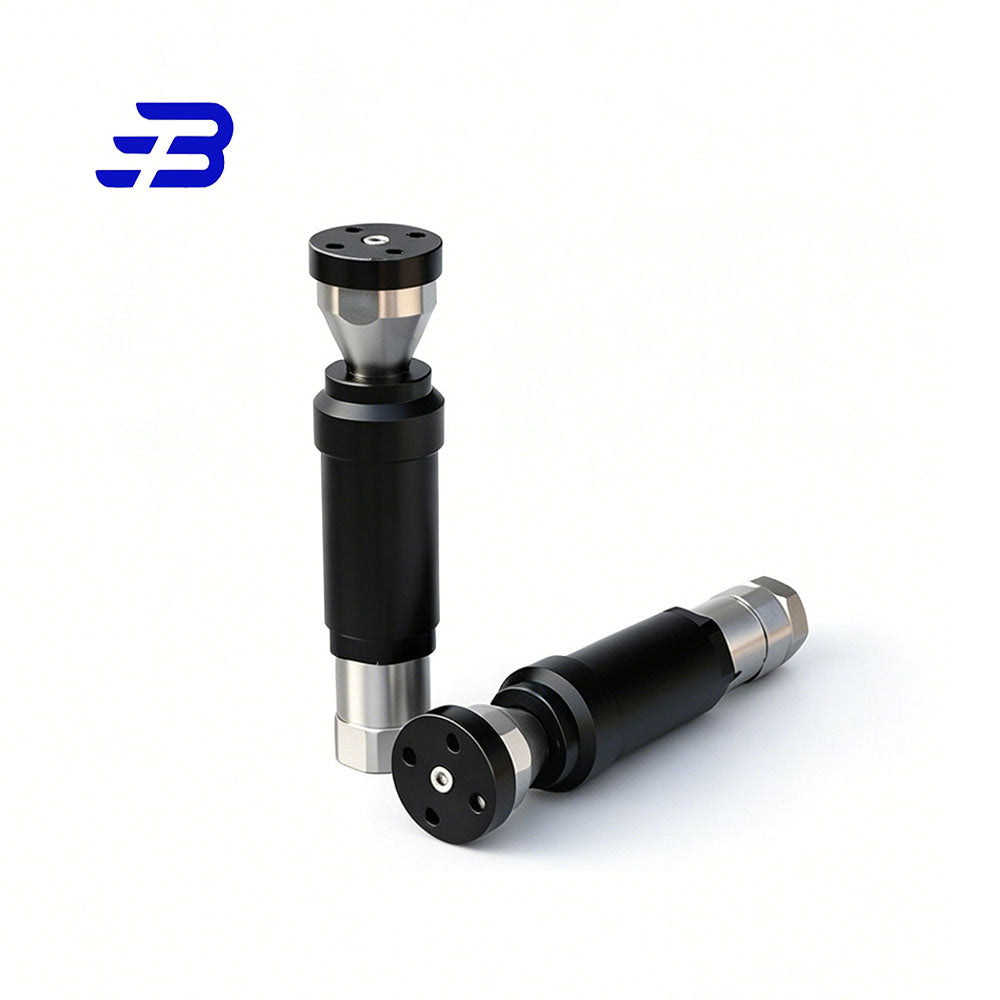

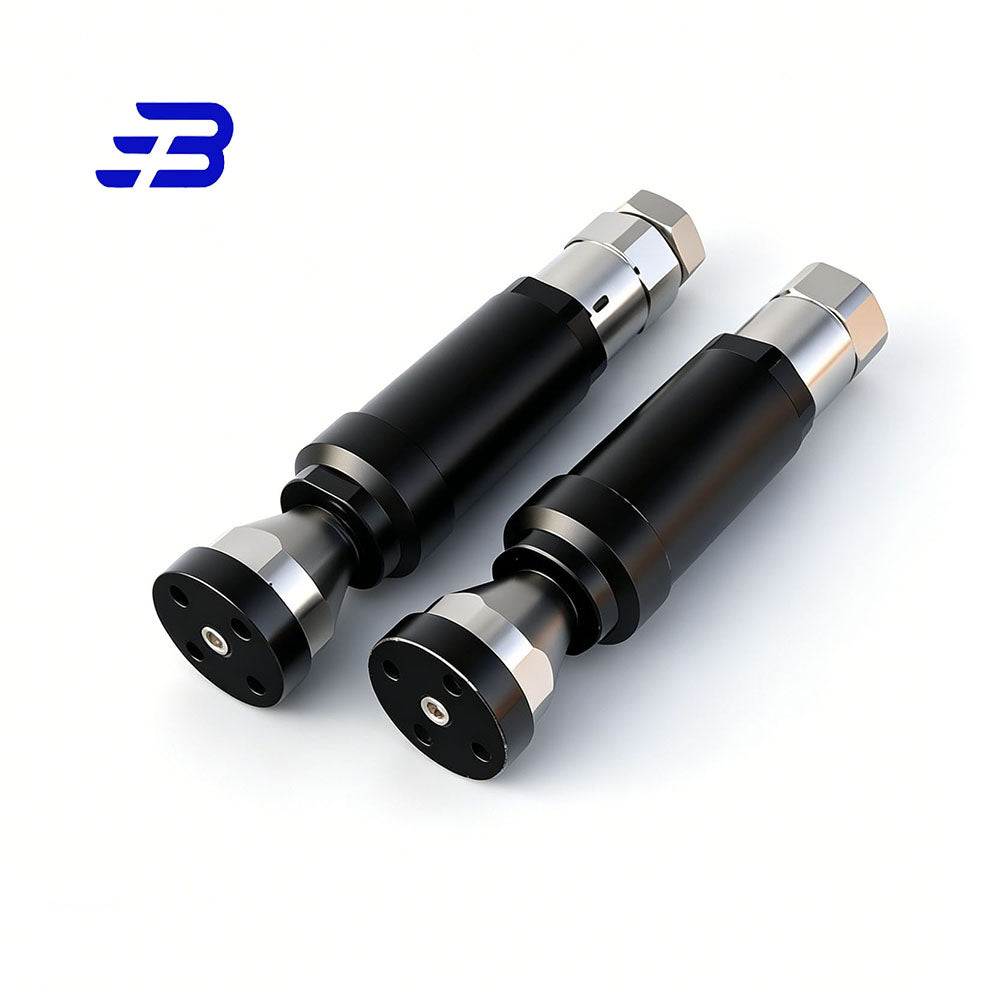

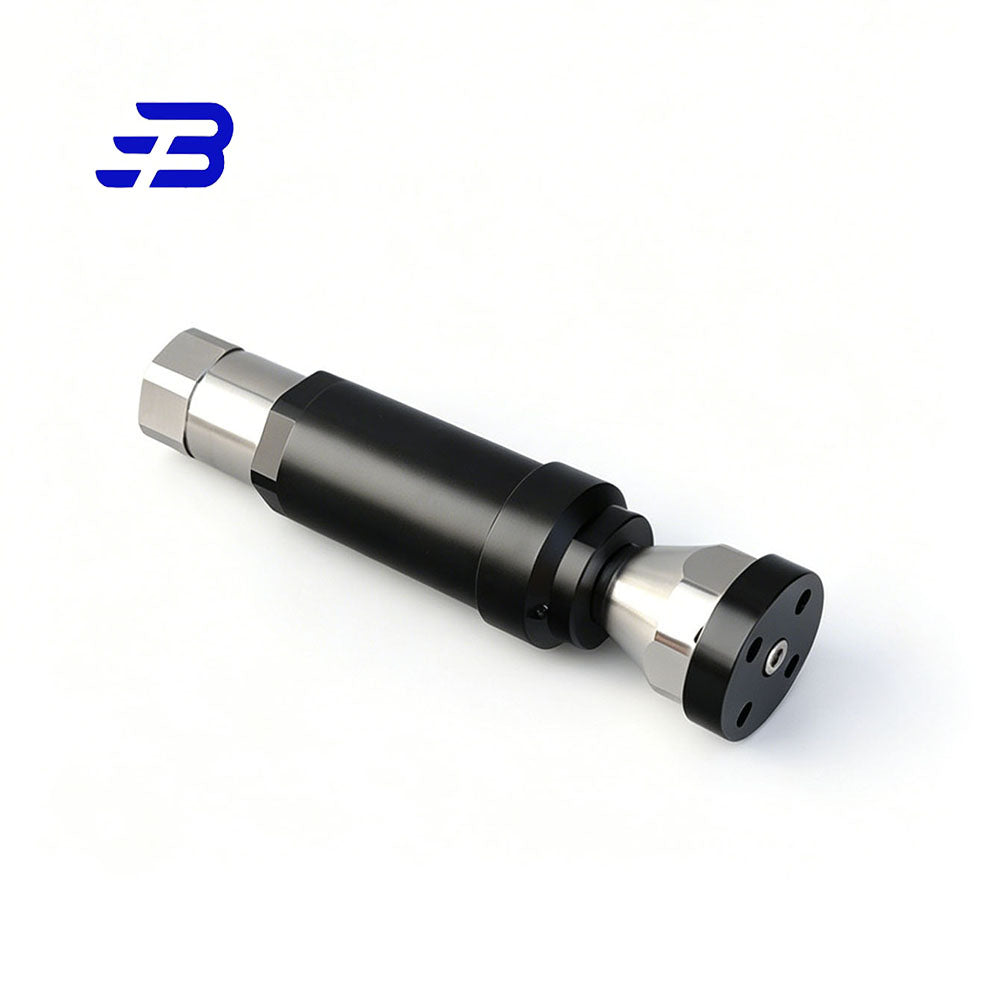

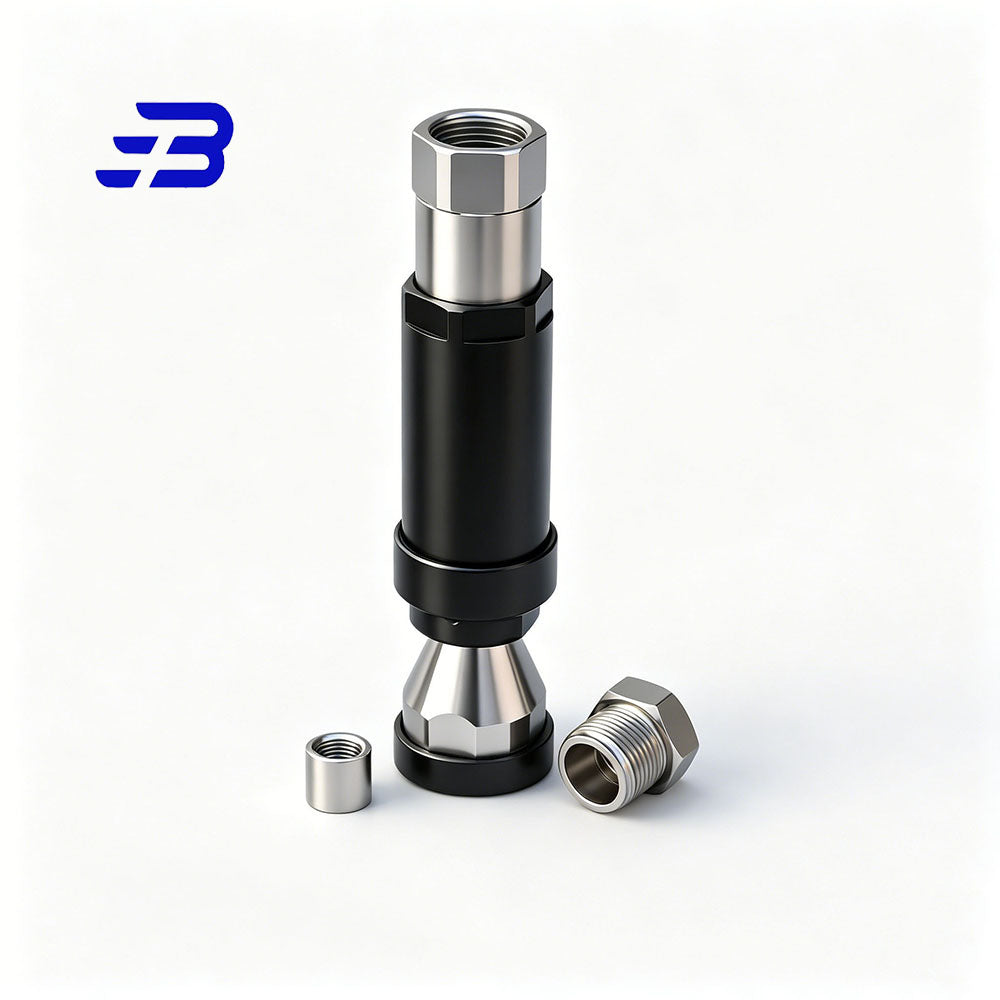

22k psi/1500 bar 4-port self-rotary Barracuda Nozzle

22k psi/1500 bar 4-port self-rotary Barracuda Nozzle

The Barracuda 22k psi/1500 bar 4-port is a speed controlled rotary shotgun tool featuring four jets that deliver concentrated power to heavy, thick deposits. Designed for speeds ranging from 1200 to 2600 rpm, the Barracuda can also be used on automated and hands-free equipment.

The zero leakage sealing design and magnetic damping speed control system enable the four hole rotating nozzle to demonstrate excellent performance in flat cleaning applications. We recommend using four nozzles to remove thinner dirt and two nozzles to remove thicker dirt. The four hole rotary cleaning nozzle eliminates the need to purchase expensive air compression devices, greatly reducing usage costs and complex maintenance procedures.

Pressure Range:      2-22k psi / 140-1500 bar
Flow Range:            4.4–13.3 gpm / 17–50 l/min
Length:                   7.8 in. / 19.81 cm
Inlet Connection:    9/16" Gland and Collar 13/16-16 (MP9)
Nozzle Type :          AP4
Diameter:                1.8 in. / 4.57 cm
Weight:                   2.7 lb / 1.2 kg
Max Pressure:         22k psi / 1500 bar
Max. Water Temp:   160°F / 71°C
Regular price $1,500.00 USD
Regular price $3,000.00 USD Sale price $1,500.00 USD
